「將軍澳新市鎮的發展」實地考察(簡短路程版)— 測量和記錄環境數據 |
|
Date: |
19/6/2018（星期二） |
Time: |
3:30 – 4:00 pm |
Location: |
將軍澳 |
|
|||
|
Routes and check points: |
(1) East route: 經(a) 西貢區議會, (b) 明德邨 至 (c)將軍澳醫院. (2) South route: 經(a) 和明苑多層停車場, (b) 新寶城 至 (c) 文曲里公園魚池 . (3) South West route: 經(a) TKO Gateway（前稱厚德商場）, (b) 東港城 至 (c) 坑口站. (4) North West route: 經(a) 坑口常寧路1號, (b) 厚德邨 至 (c) 寶寧路25號巴士站. |
|
|||||||
|
Measurement by using the App |
|||||||||
|
|
|
||||||||
|

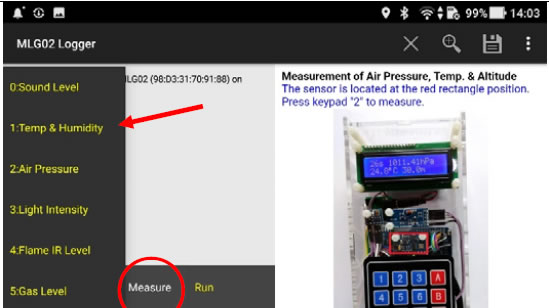

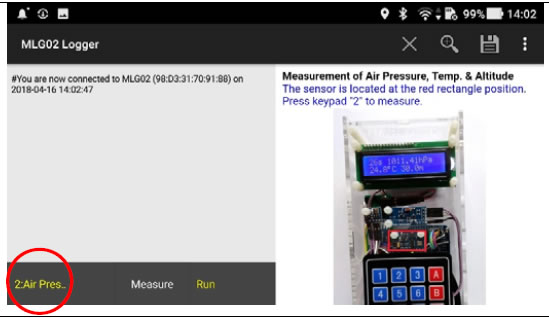

1. Click the “item” (first grid from left) at the bottom left menu bar. |
2. Select the parameter you want to measure from the scroll bar (arrow). 3. Click “Measure” when you want to log the data (circle). |
||||||||
|
Record the GPS information |
|||||||||
|
|
|
||||||||
|

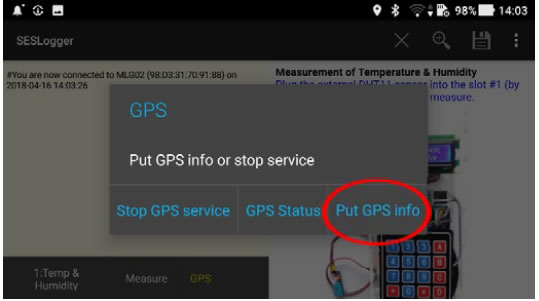

1. Click the “settings” (third grid from left) at the bottom left menu bar. 2. Select “GPS” (arrow). |
3. Record the GPS location by clicking “Put GPS info” in the pop-up window. |
||||||||
Activity I: Trial use of the mobile logger and sensors 活動一：試用環境數據記錄器及傳感器
|
Sensor and its connection 傳感器及連接埠 |
Keypad按鍵 |
Measurement and results 測量及結果 |
||||||||||||||||
|
温度與濕度(外置傳感器已連接至埠#1) |
1 |
i) Record the room temperature (T) and humidity (H): 記錄室內温度(T)及濕度(H) T=________ °C H=________% ii) Breathe out some air towards the sensor and take the measurement again: 向傳感器呼氣及再次測量數據 T=________ °C H=________% |
||||||||||||||||
|
紅外線表面温度(外置傳感器已連接至埠#6) |
7 |
Place the sensor around 2-5cm away the object surface and measure the surface temperature of different objects, ground or walls of buildings (or various parts of human body): 將傳感器放置於離物件表面2-5cm處，並測量不同物體、建築物的地面、牆壁（或人體各部分）的表面溫度：
|
||||||||||||||||
|
噪音強度(外置傳感器已連接至埠#7) |
0 |
Record the noise level in different environment/conditions: 記錄不同環境/情況下的噪音強度:
|
||||||||||||||||
|
細懸浮微粒(外置傳感器已連接至埠#8) |
D2 |
Place the sensor in different
environment and press keypad “D” and then “2” to get particulate matter
levels in ng/L (=µg/ 將傳感器放置於不同環境下，先按數字鍵上的“D” ，再按“2”來測量以ng/L (=µg/
|
Activity II: Collection of environmental data in Tseung Kwan O field trip活動二：將軍澳新市鎮的實地考察的環境數據記錄
|
Routes: □ (1) East route: 經(a) 西貢區議會, (b) 明德邨 至 (c)將軍澳醫院.□ (2) South route: 經(a) 和明苑多層停車場, (b) 新寶城 至 (c) 文曲里公園魚池 .□ (3) South West route: 經(a) TKO Gateway（前稱厚德商場）, (b) 東港城 至 (c) 坑口站.□ (4) North West route: 經(a) 坑口常寧路1號, (b) 厚德邨 至 (c) 寶寧路25號巴士站. |
|||||
|
Observation items 觀察項目 |
Air Temperature (°C) / humidity (%) 空氣温度(°C)/濕度(%) |
Surface temp (°C) of the pavement 行人路的表面温度(°C) |
Noise level (dB) 噪音強度 (dB) |
Air pollutants PM1.0 / PM2.5 / PM10 (ng/L) 懸浮粒子濃度(ng/L) |
|
|
Checkpoint (a) 觀察點(a) |
1 |
/ |
|
|
/ / |
|
2 |
/ |
|
|
/ / |
|
|
|
3 |
/ |
|
|
/ / |
|
Avg. 平均值 |
/ |
|
|
/ / |
|
|
Checkpoint (b) 觀察點(b) |
1 |
/ |
|
|
/ / |
|
2 |
/ |
|
|
/ / |
|
|
|
3 |
/ |
|
|
/ / |
|
Avg. 平均值 |
/ |
|
|
/ / |
|
|
Checkpoint (c) 觀察點(c) |
1 |
/ |
|
|
/ / |
|
2 |
/ |
|
|
/ / |
|
|
|
3 |
/ |
|
|
/ / |
|
Avg. 平均值 |
/ |
|
|
/ / |
|
After taking all measurement in each checkpoint, remember to put GPS info and save log data to a file so that a Google map of the data could be drawn. 在每個觀察點進行所有測量後，請謹記要(1)加上全球定位(GPS)資訊和(2)存檔，以便隨後可以把數據繪製在谷歌(Google)地圖上。
Website for resources 資源網站: http://stemed.online/seslogger/
Google route maps谷歌路線地圖
(1) East route: 經(a) 西貢區議會, (b) 明德邨 至 (c)將軍澳醫院.
(2) South route: 經(a) 和明苑多層停車場, (b) 新寶城 至 (c) 文曲里公園魚池 .
(3) South West route: 經(a) TKO Gateway（前稱厚德商場）, (b) 東港城 至 (c) 坑口站.
(4) North West route: 經(a) 坑口常寧路1號, (b) 厚德邨 至 (c) 寶寧路25號巴士站.
